# Integrations

### What is a Pipe?

A Pipe is a single integration unit, i.e., the sub-unit of every system integration, responsible for synchronizing all entities (Customers, Orders, Products, etc.). Each pipe is mapped to a Flow to carry out the underlying integration logic.

For a quick video explainer of What are Pipes?, [click here. ](https://www.youtube.com/watch?v=Bo2KymVaLHk)

<figure><img src="https://2655769465-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LjVABEcCgwItwY4IEAD%2Fuploads%2FNqoRNorCWQvN1IaVaWWz%2FWhat%20are%20Pipes.png?alt=media&#x26;token=1b801ed0-46e8-4766-915c-609db91c1a39" alt=""><figcaption></figcaption></figure>

### **Pipe Types**

#### Batch ![](https://lh5.googleusercontent.com/kXOx0IqyBOi1PlWrP0nTLdsIONPDzdqbmAoN8g-4dMS0HAW03yoqKoZpmm2OgqNPJzgDP9Msm4OlWl9vovciMYAk2WjGyOLn0zi3QYcIWfgn0iXGGLy5Q8YuVRAzru-xqPSLmxqd)

Data synchronization will be handled periodically at certain configured time intervals. This is the most commonly used Pipe type since it offers optimum performance.&#x20;

> *Example: Every 2 hours*&#x20;

#### Dynamic ![](https://lh3.googleusercontent.com/KStYMLew0pT1Ut2aekVjwQjEFI_yazpAz7ncASPeyB9tR4d8t0ucb8piQNTz4UdQSKveChy-ES4dhVEMkoqjKo01K9qHLyuB531hnrwQ4zQQIVRU-pLfBSdj8tDjYZVGwO94hVlb)

Data synchronization is done in real-time using an API call from any system through DCKAP Integrator. For example, services like Pricing may be configured as a Dynamic Pipe to fetch the prices in real-time.

{% hint style="warning" %}
Use the following URL to run all your dynamic services in integrator.dckap.com:

[https://lightning.dckap.com/v1/dynamic/listener/{pipe\_id}](https://lightning.dckap.com/v1/dynamic/listener/%7Bpipe_id%7D)

This URL can also be got by clicking on the ***COPY URL*** button in the Integrations page.&#x20;
{% endhint %}

{% hint style="info" %}
During a dynamic call to V3 or lightning, 400 and 401 Status codes will be returned for a disabled pipe and invalid credentials respectively.

For all other errors, 200 Status code will be returned.
{% endhint %}

{% hint style="info" %}
During dynamic calls, it is possible to authorize DCKAP Integrator by using access\_token, jwt\_token in headers/params.

Examples:&#x20;

<http://lightning.dckap.com/v1/dynamic/listener/\\><id>?access\_token=\<token>

<http://lightning.dckap.com/v1/dynamic/listener/\\><id>?token=\<jwt\_token>
{% endhint %}

### Manage Pipes

The pipes are displayed either as a Grid or a table.&#x20;

![Integrations displayed as a Grid](https://2655769465-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LjVABEcCgwItwY4IEAD%2Fuploads%2FfDZqQFa3314O1BRQEVhD%2FIntegration%20Grid%20view.png?alt=media\&token=fd671c7a-ee9a-4f64-aea7-5ba2e837feca)

![Integrations displayed as a List](https://2655769465-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LjVABEcCgwItwY4IEAD%2Fuploads%2FvaKSwWfhEpz906l1pvCY%2FIntegration%20list%20view.png?alt=media\&token=e9113277-08b1-4a28-80a4-116b25b3ee7a)

In the Integrations page, the following information is present in grid/tabular form:&#x20;

| Field Name                                                                | Sample                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          | Description                                                                                                                                                                                                                                                           |
| ------------------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Status                                                                    | ![](https://lh4.googleusercontent.com/ZzVVFGJVkHSea5oRZcC59MIJ0KMsrwqs9caW7qPOLdzr4UvOdVW1AkZZuxKaW46s3sazTWjXSF_YiHXsckWW3hyrihq4WKOA8HFwa61TaQCwO39aXKgOiWRfjM316eRch1lE8Ffh)                                                                                                                                                                                                                                                                                                                                                                                 | Enables or disables the working of a pipe, used especially during scheduled synchronization                                                                                                                                                                           |
| Pipe Name                                                                 | ![](https://lh6.googleusercontent.com/x3DAtICublO3TdU1qdQuujmTZ_CfiCKZ6bwvIwhxmH0F7bVIljFQu9_ra8loreeCHVbfXWChwQplenTNSOEm5um6QO2FVUpNJWaHt-xzWYILGaFZChjbhbc2lIpNhuTK5YOtytOd)                                                                                                                                                                                                                                                                                                                                                                                 | Displays the name of Integration Pipe                                                                                                                                                                                                                                 |
| Systems                                                                   | ![](https://2655769465-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LjVABEcCgwItwY4IEAD%2F-M50mdERQCSR5NVRTVej%2F-M50mpWe0kze4E0ExjgT%2Fsystems.png?alt=media\&token=0a663ac6-9539-4066-a405-39c4cef465a4)                                                                                                                                                                                                                                                                                                                                    | <p>Systems connected in the pipe<br></p>                                                                                                                                                                                                                              |
| Type of Integration                                                       | <p><img src="https://lh5.googleusercontent.com/kXOx0IqyBOi1PlWrP0nTLdsIONPDzdqbmAoN8g-4dMS0HAW03yoqKoZpmm2OgqNPJzgDP9Msm4OlWl9vovciMYAk2WjGyOLn0zi3QYcIWfgn0iXGGLy5Q8YuVRAzru-xqPSLmxqd" alt="">Batch </p><p><img src="https://lh3.googleusercontent.com/KStYMLew0pT1Ut2aekVjwQjEFI_yazpAz7ncASPeyB9tR4d8t0ucb8piQNTz4UdQSKveChy-ES4dhVEMkoqjKo01K9qHLyuB531hnrwQ4zQQIVRU-pLfBSdj8tDjYZVGwO94hVlb" alt="">Dynamic</p>                                                                                                                                           | <ul><li><strong>Batch</strong>: When the data synchronization is done periodically </li><li><strong>Dynamic</strong>: When the data synchronization is done in real-time using an API call to the system</li></ul>                                                    |
| Sync status                                                               | <img src="https://lh4.googleusercontent.com/OBFCcRxKiZIfNxonzS4GwHwB8XmMcFb41SS2Dpcj05OJaRjeFvfCNPKOMS4GpvW_TI5YZg1sgo0v98aIDgkezGyLjg5SbKgZ61HdDd1KbgKX8J_dkXttQoiBRYd3ZfnhtOQhUPzm" alt="" data-size="original">                                                                                                                                                                                                                                                                                                                                              | Displays the time at which the last sync was performed and if the sync was complete or not                                                                                                                                                                            |
| <p><strong>Sync Now</strong> &</p><p><strong>Copy URL</strong> button</p> | <p><img src="https://2655769465-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LjVABEcCgwItwY4IEAD%2F-M50mdERQCSR5NVRTVej%2F-M50mw1V8KLbm7UJVTFe%2FSync_button.png?alt=media&#x26;token=bb03738f-98d9-4ba5-a22f-c4ec5e82e52f" alt="" data-size="original"></p><p><img src="https://2655769465-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LjVABEcCgwItwY4IEAD%2F-M50mdERQCSR5NVRTVej%2F-M50mxwSvXFWxKw628dn%2FCopyUrl_button.png?alt=media&#x26;token=a92f1026-5453-4a7e-bb35-65735372028b" alt="" data-size="original"></p> | <p>For Batch type Integration ⇒ Start the integration process by manually clicking on the <strong>Sync Now</strong> button. <br></p><p>For Dynamic type Integration ⇒ <strong>Copy URL</strong> and share across different systems to access data from the system</p> |
| View Logs                                                                 | ![](https://lh3.googleusercontent.com/CnlGBD66Aw-qslPITVXm3Z9p4KXF6DX9-hzh1zFSk1pMlDVyBp2iJGiJ-tVdc_py2mLN9MCNlyfnbDvWLAzPTQu_Xl9b4yx8tYYoF_biFlZXqPoRVSLRt8XiX4Rn1ZuYk8jRpGPX)                                                                                                                                                                                                                                                                                                                                                                                 | To view Logs of this pipe                                                                                                                                                                                                                                             |
| Enable/Disable Autopilot Mode                                             | <p><img src="https://2655769465-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LjVABEcCgwItwY4IEAD%2F-M50mdERQCSR5NVRTVej%2F-M50nAa3NPRETd6YERn3%2Fautopilot-on.png?alt=media&#x26;token=5cd5fd0d-2879-4c8f-b4db-609450956cc0" alt=""></p><p><img src="https://lh5.googleusercontent.com/szRw2c9WKuI-qj8l7bfPgRCF16VWcyHILgBXQsTSmlIFXFBx0CzHDcXV0Z6Vhcp8SvxEi_6pgWe5TxN0R2KhL-4pWnfAygtFVkjv1v-ZNWuN0fLFtAFVdPKnKT3P0rP7O5Dforbt" alt=""></p>                                                                                                  | <p>Only for Batch type Integration. To enable or disable Autopilot mode.<br></p><p>For Dynamic pipe, scheduling is disabled.</p>                                                                                                                                      |

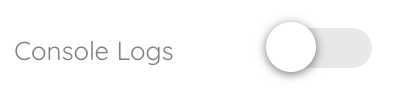

| Enable/Disable Console Logs                                               | <img src="https://2655769465-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LjVABEcCgwItwY4IEAD%2F-M50mdERQCSR5NVRTVej%2F-M50n46232GM7PIANrFp%2Fconsole_logs.png?alt=media&#x26;token=1c98c16d-4ff7-441e-977a-48dd4a579a94" alt="" data-size="original">                                                                                                                                                                                                                                                                                        | To enable or disable console logs for this Integration                                                                                                                                                                                                                |

### Auto Pilot Mode and Scheduler

The Sync process for Batch type integration can be automated by scheduling it. This is done by clicking on the **Enable Auto Mode** link present just below the pipe name or clicking the ![](https://lh4.googleusercontent.com/JVzohu9PTtDH4S4N_bWS3Rg8V8zZas4uoxc8TTB-tkCuN5MyJnZxwpmj4J3pDqZxKm7Z652r72b2ypFkC-_PTe7opIVcpAWDFhN1pT_QMuANThR_oxBdz0Smhlm_vH1w4kTGHgCY)icon and then editing the synchronization time. The Minimum Interval Period for scheduling is 5 minutes

![](https://2655769465-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LjVABEcCgwItwY4IEAD%2F-M4ScJErrMfZUUU-zSOr%2F-M4ScXP8fmcRPGbOLILc%2Fscheduler.png?alt=media\&token=29660f83-8fd0-45cf-ab1c-cdd62b97a9f6)

{% hint style="danger" %}
For a Dynamic pipe,  the ability to schedule is disabled
{% endhint %}
